When identical cavities produce different parts, compare the parts by cavity position before changing the common machine settings. A consistent cavity-specific pattern can point toward differences in flow, cooling, venting, ejection, or tool condition; random variation across all cavities may instead indicate a broader process or material issue. Treat this as a diagnostic sequence, not a shortcut to blame one component.
First establish whether the variation follows a cavity
Do not begin by changing several settings at once. Label or otherwise preserve cavity identity for a representative sample set, then compare the same features across cavities. Look for repeatability: does one location repeatedly show a dimensional shift, flash, short fill, gloss change, or release mark while the others remain stable?
Separate three patterns. A repeatable cavity-position effect suggests a local tool or flow condition. A shift affecting all cavities together suggests a shared condition such as material state, machine setting, or coolant change. A scattered pattern may reflect intermittent handling, contamination, or measurement variation. The observed pattern narrows the investigation but does not prove the cause.
Where cavity-specific differences can enter
Flow can differ because of runner geometry, gate condition, venting, or an obstruction. Cooling can differ if circuit routing, flow, or maintenance condition is not equivalent. Tool wear, insert seating, vent condition, and local damage can also affect a particular cavity. Ejection may create another split: a part that sticks or is pushed unevenly can distort or mark differently after molding.
Measurement method matters too. Confirm that the same datum scheme, fixture, instrument, and operator method are being used for each cavity sample. A small setup difference can appear to be a molding difference. Keep measurement uncertainty and part conditioning in view when interpreting close readings.
| Observed pattern | First checks | Avoid assuming |
|---|---|---|
| One cavity repeatedly underfills | Gate, vent, local flow path, cavity pressure response | That the whole shot needs more pressure |
| One cavity shows more flash | Parting-line condition, insert seating, local clamp and pressure effects | That all cavities need a global process change |
| Dimensions differ by cavity | Cavity identity, cooling, measurement datums, sample conditioning | That the drawing tolerance is automatically wrong |
| Variation moves between cavities | Material, machine, handling, sampling and measurement repeatability | That one fixed tool location is the root cause |
A controlled troubleshooting sequence
- Define the feature: identify the drawing dimension or visible defect, its acceptance rule, and measurement method.
- Preserve cavity identity: collect samples from each cavity under comparable conditions.
- Repeat the observation: check whether the same cavity shows the same pattern over more than one sampling point.
- Review common variables: verify resin handling, machine records, coolant connections, and process changes that affect the whole tool.

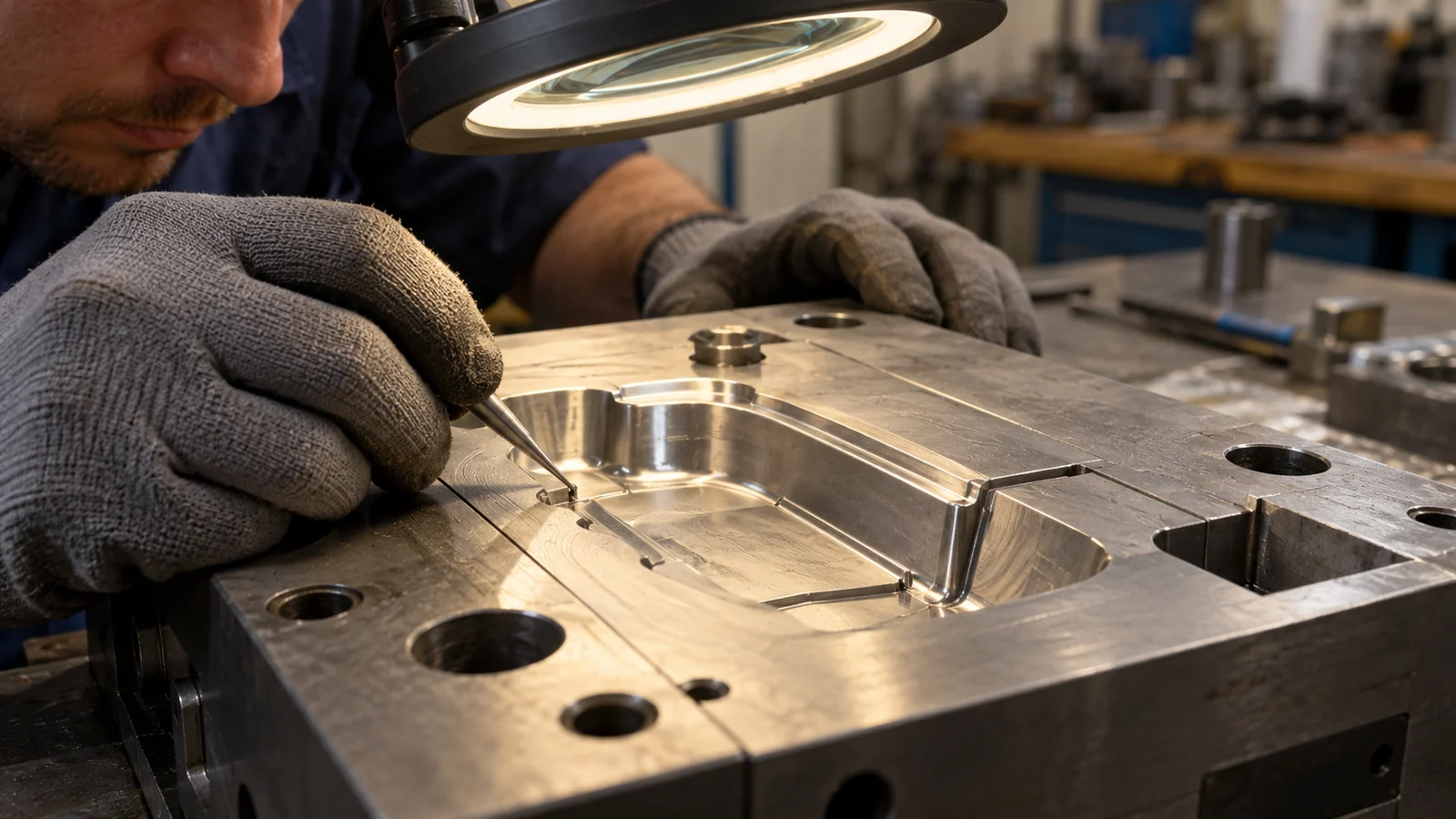

- Inspect the local tool path: review gate, vent, cooling, insert, parting line, and ejection details associated with the affected cavity.
- Change one controlled variable: document the change and compare all cavities again, not only the outlier.
A cavity-pressure or temperature signal may help if the tool and monitoring plan support reliable cavity-level measurements. Do not infer a sensor reading that the process does not capture. The available evidence should determine how specific the diagnosis can be.
When to adjust the tool or the process
Use process changes when the evidence indicates a common setting is outside a stable window and the correction improves the full cavity set. Consider tool maintenance or local design changes when a repeated position-specific problem aligns with a gate, vent, cooling, or mechanical condition. If a global adjustment fixes one cavity but pushes other cavities out of acceptance, the tool may need a more local solution.
For a broader tooling review, see multi-cavity injection mold design. The review should connect part measurements to cavity location, process records, and tool condition before a permanent change is approved.
FAQ
Should I increase packing pressure if one cavity is short?
Not as a first move. A global pressure change can affect every cavity and may create flash or dimensional shifts elsewhere. Confirm the cavity-specific pattern and inspect local flow, gate, and vent conditions before changing the shared setting.
How many samples are enough to identify a cavity pattern?
There is no universal count. Use a sampling plan suited to the part’s risk and the repeatability question, and preserve cavity identity so results are comparable.
Can a multi-cavity tool have different process conditions for each cavity?
Most common machine settings act on the shot as a whole. Tool design and local features can influence individual cavities, but confirm the available controls before assuming each cavity can be adjusted independently.
