High-Performance Polymers
JUCHENG leads the industry in high-performance polymer injection molding, offering advanced metal replacement plastics for extreme environments. We are experts in high temp plastic molding, processing resins that maintain integrity where standard polymers fail.
IATF 16949 / ISO 13485 / ISO 14001 VALIDATED

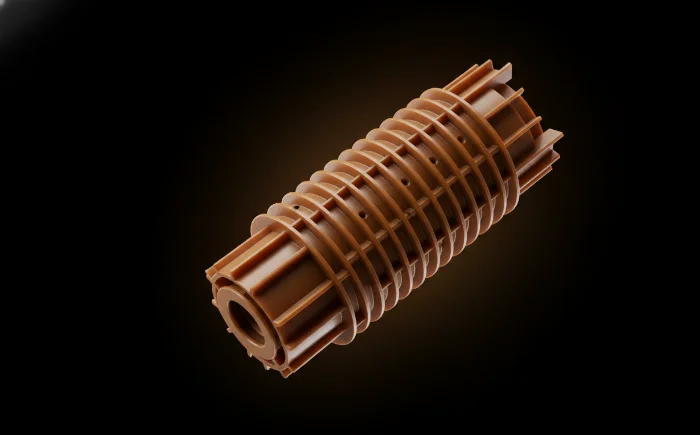

PEEK (Polyetheretherketone)
The pinnacle of technical polymers; provides metal-replacement strength with exceptional biocompatibility and continuous operation at 260°C.
Properties: Extreme thermal stability (Continuous Operating Temp up to 260°C), aerospace-grade strength-to-weight ratio, and excellent biocompatibility.
Processes: High-Temperature Molding (Requires 400°C+ melt and oil-controlled tool temperatures).
Industries: Medical Implants, Aerospace, Oil & Gas.
Applications: Orthopedic implants, aircraft engine components, downhole pump valves.
PPS (Polyphenylene Sulfide)
A high-performance "Plastic-Metal" inherently resistant to all known industrial solvents and optimized for high-voltage thermal management systems.
Properties: "Plastic Metal"; inherently flame retardant and resistant to nearly all industrial solvents.
Processes: High-Precision Multi-Cavity Molding, High-Heat Technical Molding.
Industries: Thermal Management Systems, Electric Vehicles (EV).
Applications: EV coolant pump bearings, automotive thermostats, high-voltage busbar supports.

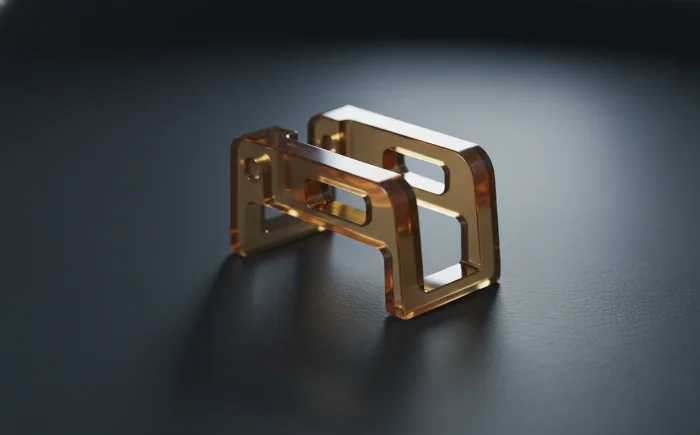

PEI (Polyetherimide / Ultem)
The ultimate solution for micro-scale precision; offers near-zero thermal expansion and exceptional flow for ultra-thin wall technical geometries.
Properties: Elite dielectric strength and superior flame retardancy with low smoke emission.
Processes: Complex Geometry Molding, Precision Insert Molding.
Industries: Avionics, Mass Transit, Medical Sterilization.
Applications: Aircraft interior components, high-voltage connectors, surgical sterilization trays.
LCP (Liquid Crystal Polymer)
The versatile engineering workhorse for impact-resistant housings, offering the ideal substrate for premium Class-A surface finishes and electroplating.
Properties: Exceptional melt flow and near-zero Coefficient of Thermal Expansion (CTE).
Processes: Micro-Molding, Ultra-Thin Wall Technical Molding.
Industries: 5G Telecommunications, Semiconductor Equipment.
Applications: Micro-connectors, high-frequency sensors, IC test sockets.

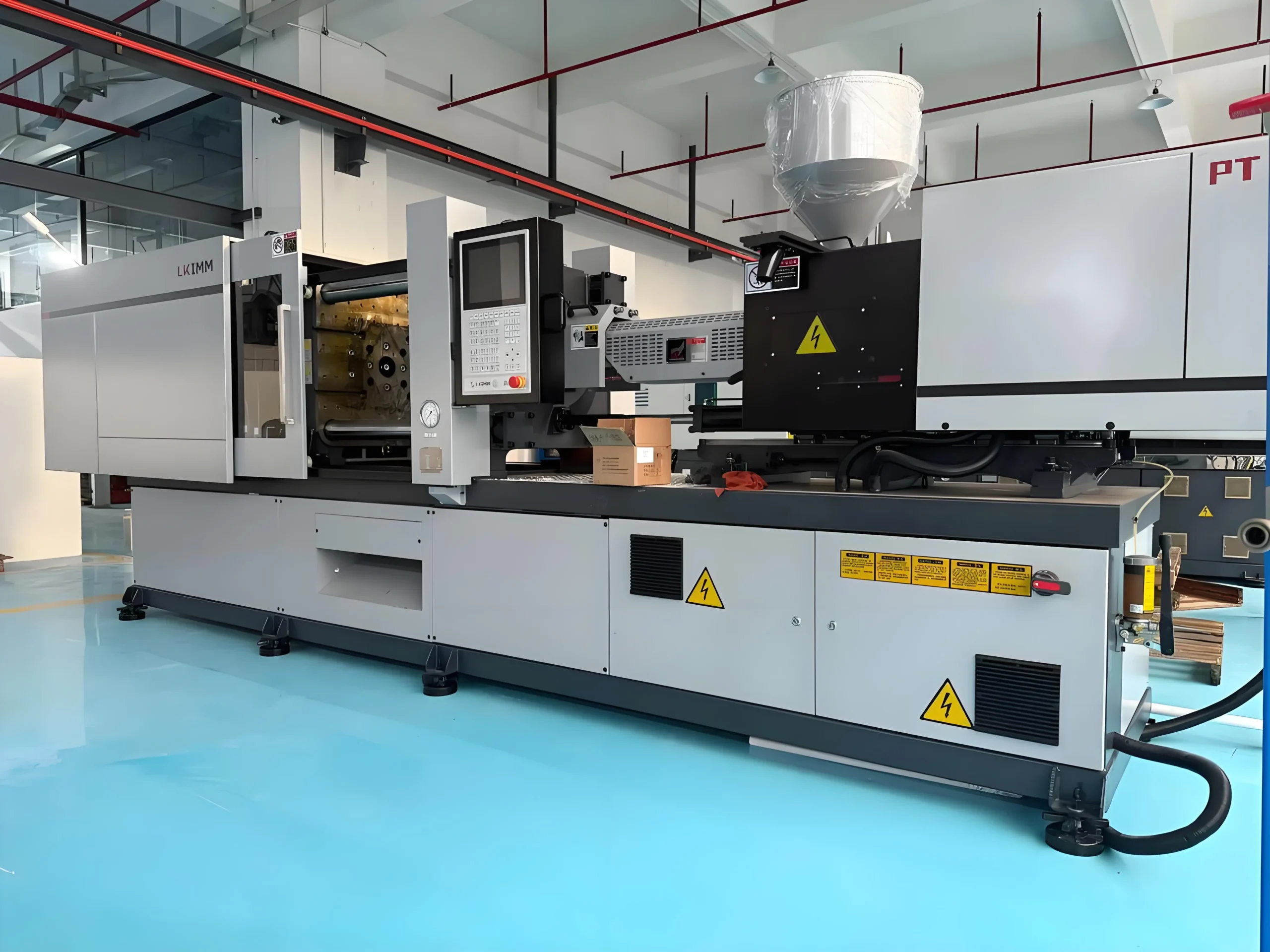

Mastering Extreme Processing
Standard injection molding cannot handle super-polymers. Jucheng provides the specialized infrastructure required for success.
Ultra-High Mold Temperatures
PEEK and PEI require mold temperatures above 160°C. We utilize advanced oil temperature controllers to ensure uniform crystallization and zero internal stress.
In-House Hardened Steel Tooling
Our 25+ 5-axis CNC machines cut mold cores from premium hardened steels (S136, H13) to withstand the high pressures and abrasive nature of high-performance resins.
Zeiss CMM Verification
Critical parts demand certified quality. We use Zeiss CMM inspection to verify every micron, ensuring safety in medical and aerospace applications.
High-Temperature Processing Guidelines
Our high-performance polymer injection molding capabilities focus on materials like PEEK injection molding and Ultem injection molding. These specialty resins are critical for aerospace plastic components and medical grade plastic manufacturing requiring repeated sterilization.
| Polymer Type | Melt Temperature (C) | Mold Temperature (C) | Max Service Temp (C) | Glass Transition (Tg) |
|---|---|---|---|---|
| PEEK (Natural) | 360 - 400 | 160 - 200 | 250 | 143 |
| PEI (Ultem 1000) | 340 - 400 | 130 - 180 | 170 | 217 |
| PPS (40% Glass) | 300 - 340 | 130 - 150 | 200+ | 90 |
| LCP (Liquid Crystal) | 280 - 330 | 80 - 120 | 240 | - |
Mission-Critical Applications

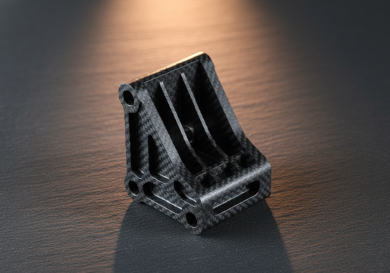

Aerospace
Replacing aluminum structural components with carbon-filled PEEK to reduce aircraft weight while maintaining strength and flame resistance.

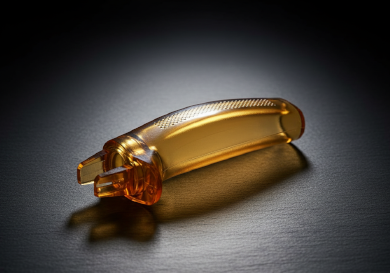

Medical Devices
Sterilizable Ultem surgical handles and diagnostic enclosures that withstand repeated autoclave cycles without degradation.
Automotive
PPS engine components and high-heat sensor housings designed for long-term reliability in aggressive under-the-hood environments.
Ready for Metal Replacement?
Our engineers are experts in high-performance resin DFM. Upload your CAD today for a quote within 24 hours.
UPLOAD CAD FOR FREE DFM & QUOTE
