Evaluating manufacturing budgets for metal-plastic hybrid components requires a detailed understanding of tooling fabrication, resin selection, and automation levels. Specifying custom insert molding cost drivers during early development stages allows engineering teams to optimize unit economics before committing to production tooling. Combining pre-formed metallic pins, threaded fasteners, or conductive busbars directly with molten polymer eliminates secondary assembly steps while improving mechanical pull-out strength. This pricing guide analyzes core cost variables, tooling investments, and practical DfM methods for reducing manufacturing expenses.
Table of Contents
4 Key Variables Influencing Insert Injection Molding Quotations
Understanding how quotation estimates are compiled helps procurement managers optimize capital expenditure. Primary insert injection molding pricing variables center on insert sourcing complexity, tool cavity steel selection, loading automation, and material yield rates. Pre-stamped copper busbars or custom knurled brass threaded studs require tight dimensional control on metal tolerances. Metal tolerance variation directly impacts shut-off land sealing, where tight steel fitments prevent plastic flash from flowing onto electrical contact pads.
Tool steel selection represents a major portion of initial non-recurring engineering budgets. Machining cavities out of hardened S136 stainless steel or H13 tool steel increases upfront mold cost compared to pre-hardened soft steels, but guarantees long-term tool life exceeding 1,000,000 cycles. High-chrome stainless steels resist corrosive outgassing from flame-retardant polymers, eliminating frequent mold maintenance and polishing down-time.
Evaluating cycle time differences between manual operator loading and automated robotic insert loading impacts piece-part pricing significantly. Manual insert placement suits low-volume bridge production of 1,000 to 5,000 parts by avoiding automated end-of-arm tooling costs. High-volume automotive runs utilize multi-axis articulated robots to load inserts within seconds, reducing machine hold times and lowering unit labor costs.
Scrap rate management and resin waste control form the final major cost component. Processing high-performance thermoplastics requires precise process controls to prevent short shots or insert displacement under hydraulic injection pressure. Minimizing runner system scrap through hot runner manifolds reduces overall material consumption on expensive engineering polymers.
Core pricing evaluation drivers include:
- Metallic insert sourcing cost—Purchasing standardized off-the-shelf brass fasteners lowers costs compared to custom progressive die stampings.
- Tool cavity steel hardness—Specifying fully hardened H13 or S136 steel increases NRE tooling costs but minimizes maintenance over long runs.
- Automation end-of-arm tooling—Integrating 6-axis robotic loading automation requires upfront capital but slashes unit labor expenses.
- Runner system efficiency—Utilizing valve-gated hot runner systems eliminates sprue scrap on high-cost engineering polymers.
How to Optimize Your Insert Tooling Budget without Sacrificing Precision

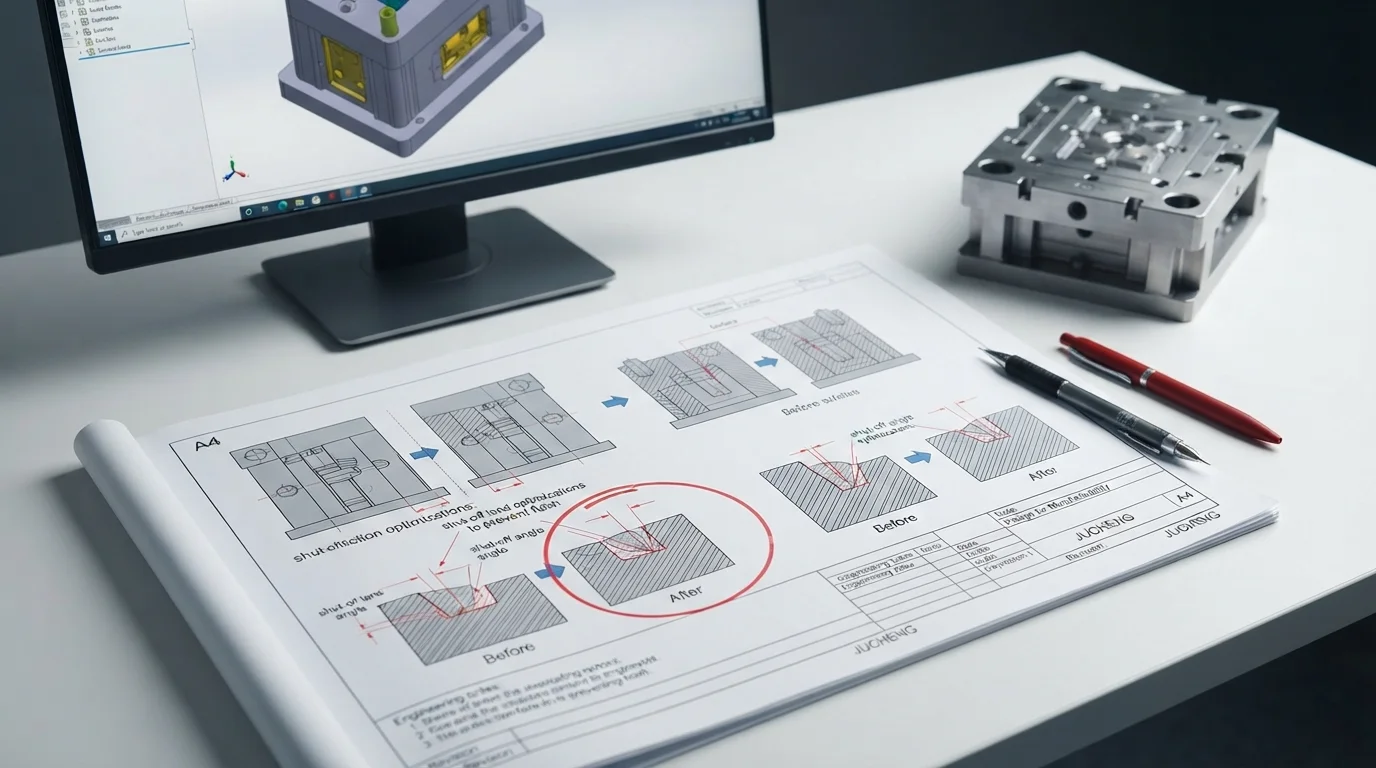

Stripping unnecessary tooling expenses begins with a comprehensive Design for Manufacturability (DfM) review completed prior to cutting mold steel. Technical reviews evaluate draft angles, wall thickness uniformity, and core pin locating mechanisms to prevent core displacement during injection. To minimize insert molding cost, optimizing the mold shut-off area is essential for reliable insert molding.
Standardizing insert geometries across multiple product lines reduces custom stamping and machining expenses. Designing uniform boss wall thicknesses prevents localized sink marks and eliminates the need for expensive secondary cosmetic fills. Incorporating simple pass-through shut-offs or sliding core line modifications allows features to be molded directly in the line of draw, eliminating complex side-action sliders.
| Cost Optimization Strategy | Tooling Budget Impact | Unit Price Impact | Primary Engineering Advantage |
|---|---|---|---|
| Standardized Threaded Inserts | Zero custom tooling NRE | 15% – 25% Reduction | Eliminates custom progressive stamping dies |
| Line-of-Draw Pass-Through Shut-Offs | 20% – 35% Lower Mold Cost | 5% – 10% Reduction | Eliminates hydraulic side-action sliders & lifters |
| Robotic Automation (High Volume) | Higher initial automation setup | 30% – 50% Reduction | Cuts cycle time & eliminates operator placement errors |
Frequently Asked Questions (FAQs)
How does manual insert placement affect part unit cost compared to robotic automation?
Manual insert placement lowers initial NRE capital by eliminating custom robotic end-of-arm tooling, making it ideal for low-volume prototype runs of 1,000 to 5,000 units. Automated robotic insert placement increases initial tooling investment but dramatically reduces machine cycle time and labor expense, resulting in significantly lower unit costs for high-volume production runs exceeding 50,000 parts.
Why does metal insert quality impact mold maintenance costs?
Out-of-spec metal inserts with dimensional variations prevent mold shut-off steel from sealing properly against active contact areas. Oversized inserts crush steel shut-off lands upon clamp-up, causing expensive tool damage and flashing. Undersized inserts leave micro-gaps that permit molten resin to bleed onto terminal contact faces, causing high scrap rates and frequent tool cleaning.
What is the most effective way to lower initial insert molding tooling expenses?
Conducting an early DfM review to eliminate complex side-action undercuts is the most effective way to reduce tooling costs. Redesigning features to utilize line-of-draw shut-offs or simple hand-loaded loose cores eliminates expensive hydraulic sliders. Standardizing threaded brass insert sizes across your assembly also lowers insert purchasing costs.
