Manufacturing tight-tolerance components for medical diagnostic instruments, aerospace guidance systems, and automotive sensors requires extreme dimensional repeatability. Conventional plastic molding methods struggle with localized thermal contraction and batch-to-batch polymer viscosity variations. Specifying precision injection molding eliminates these manufacturing risks by establishing strict cavity pressure control and automated optical verification. JUCHENG operates controlled manufacturing cells, producing high-accuracy plastic components strictly according to customer technical drawings.
Table of Contents
±0.01 mm Component Tolerances & Decoupled Scientific Molding (CPK > 1.67)

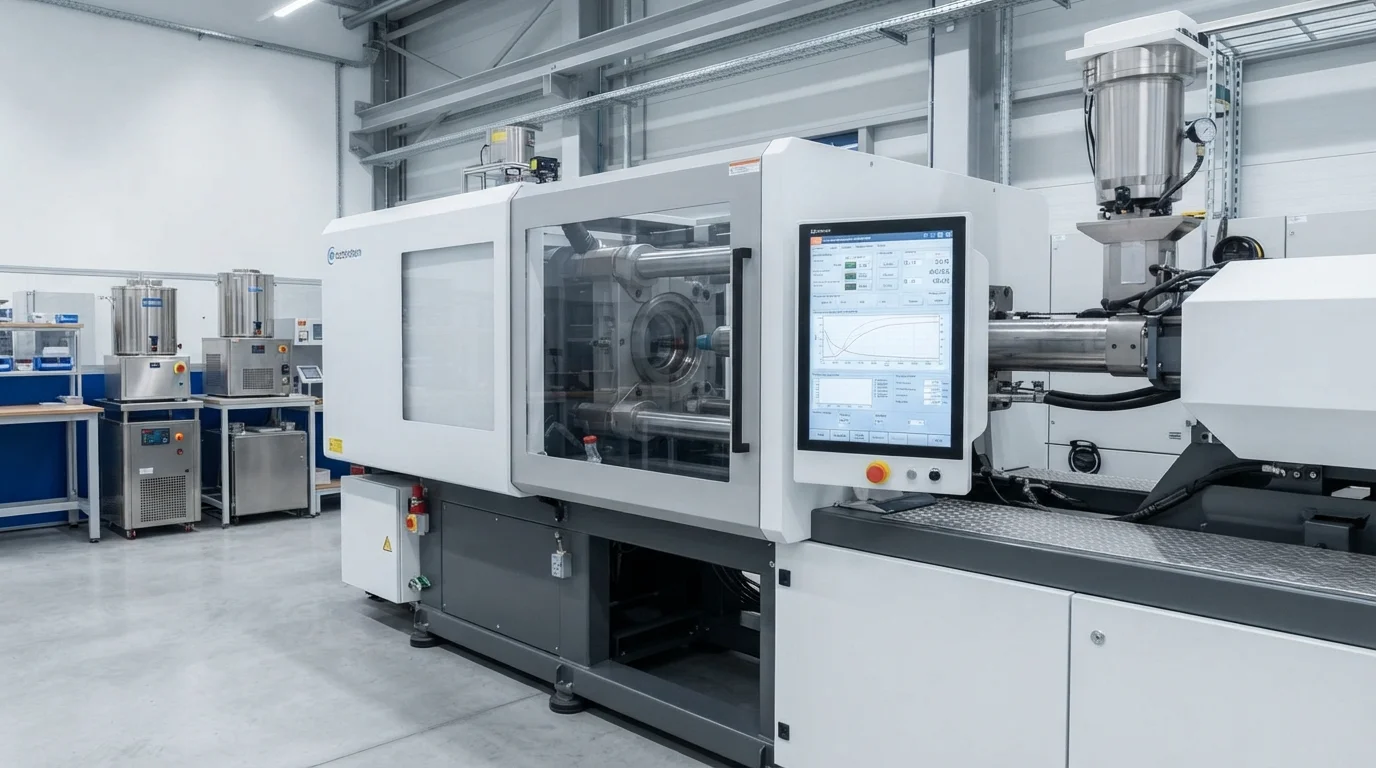

Achieving consistent component tolerances down to ±0.01 mm depends on establishing stable melt rheology during cavity filling. Executing scientific molding principles through Decoupled Molding isolates filling, packing, and holding phases. Separating velocity control from pressure control enables technicians to compensate for raw material lot-to-lot viscosity fluctuations dynamically. Real-time cavity pressure transducers monitor melt compression inside every mold pocket, ensuring consistent part weight and density. Maintaining CpK & PpK > 1.67 across continuous production runs eliminates dimensional drift and guarantees 100% part interchangeability.
Scientific process control steps for precision molding include:
- Decoupled filling velocity—Filling 95% of the cavity volume under pure velocity control prevents premature melt freezing.

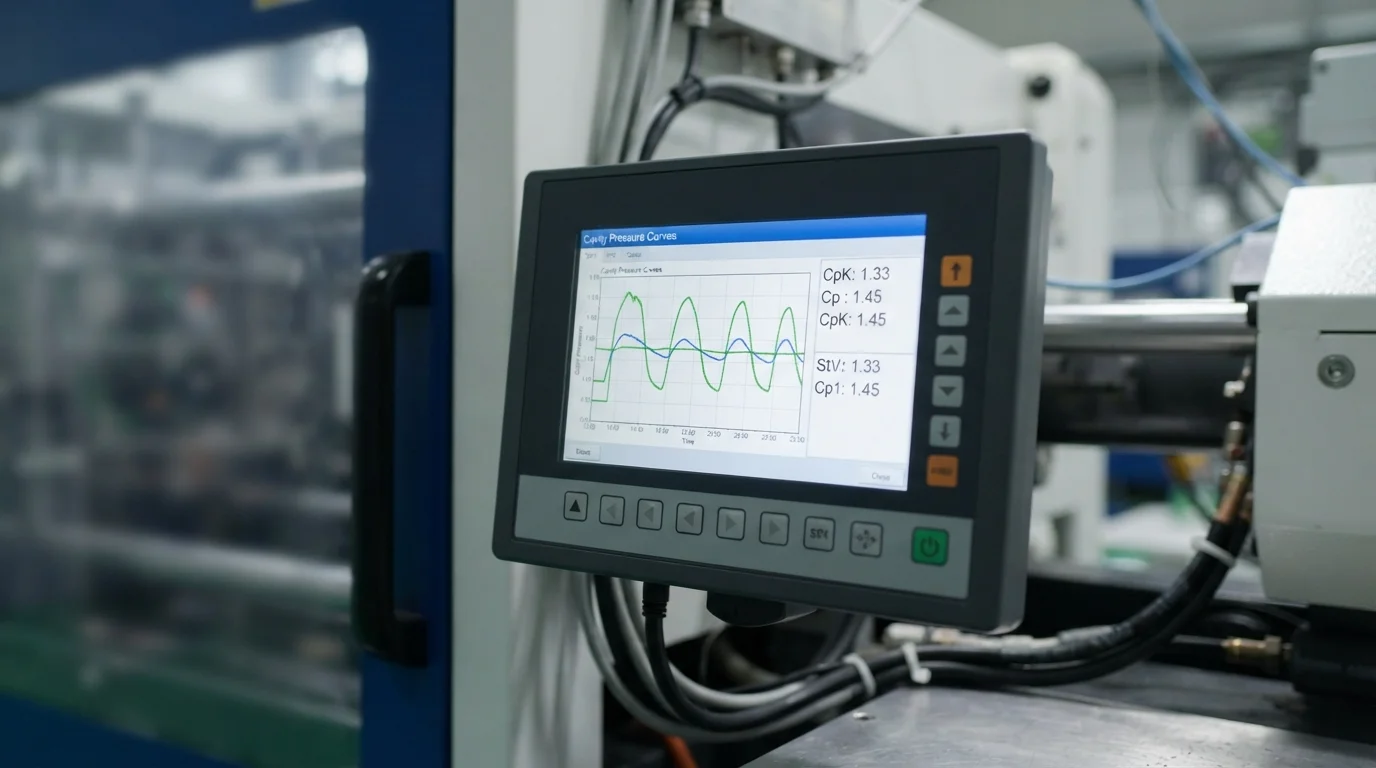

- Cavity pressure transducers—Monitoring internal pressure profiles detects partial fills and density variations instantly.
- Decoupled pack and hold pressure—Applying controlled holding pressure feeds polymer shrinkage without overpacking gate regions.
- Statistical process control tracking—Logging dimensional data on real-time control charts verifies CpK performance continuously.
Zeiss CMM (±0.003 mm) & OGP Optical Metrology Inspection

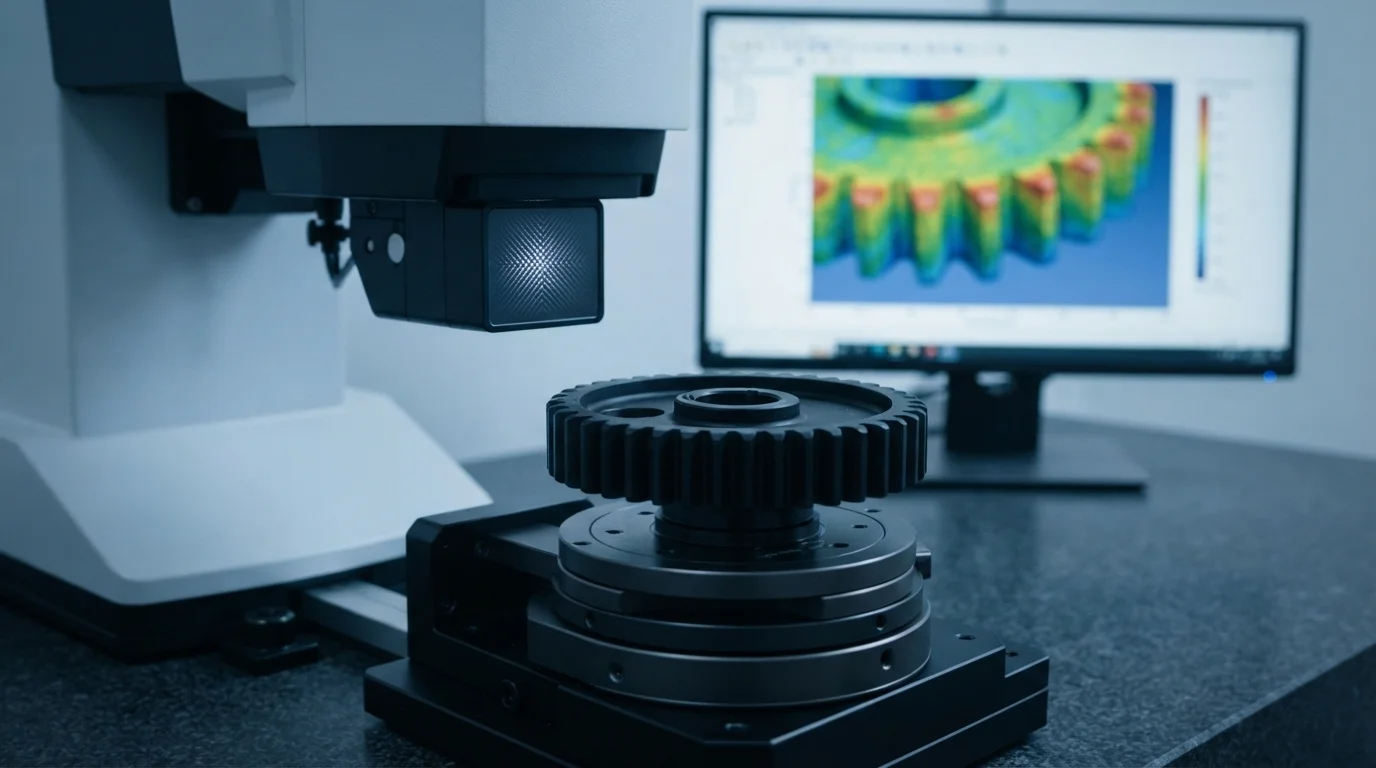

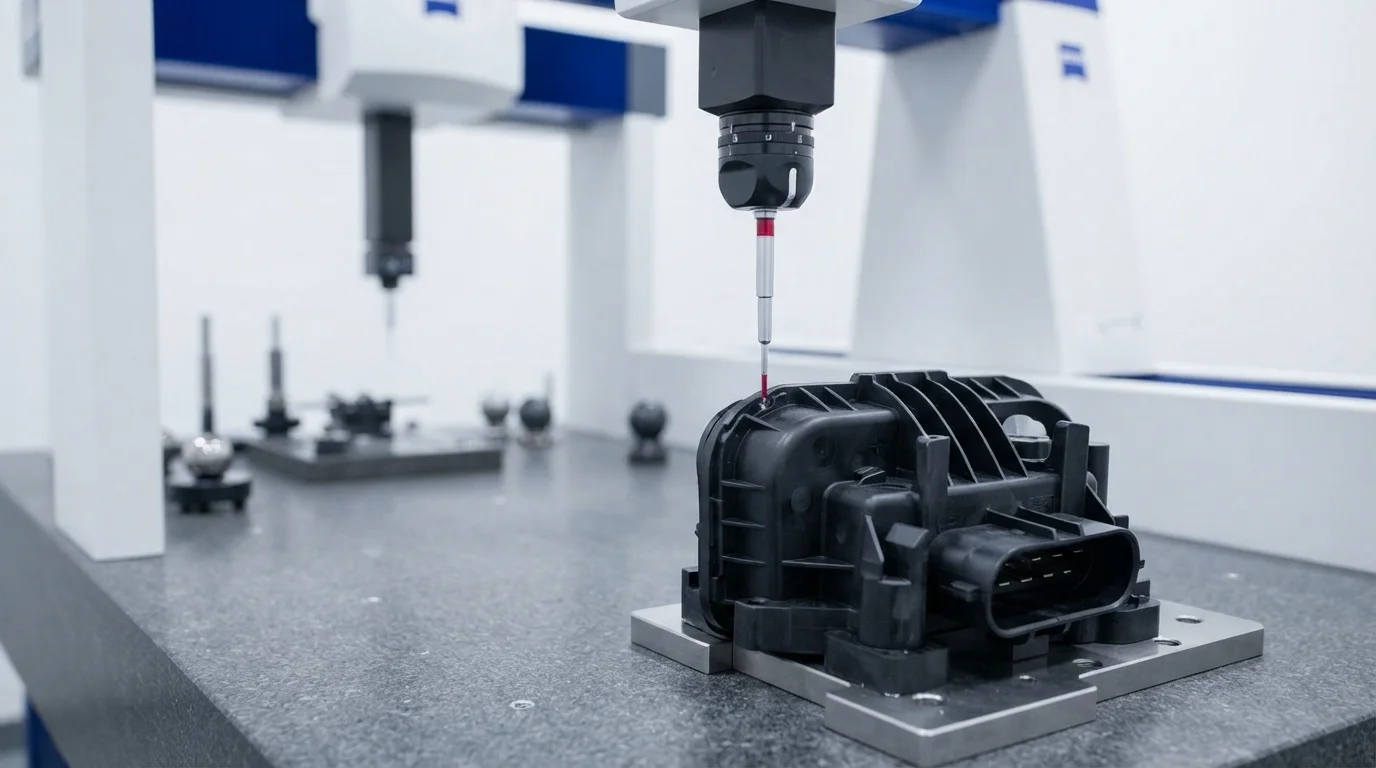

Verifying sub-millimeter component features demands advanced metrology systems inside climate-controlled inspection laboratories. Metrology inspections utilize automated Zeiss CMM coordinate measuring machines with scanning precision of ±0.003 mm. Complementing touch-probe CMM units, OGP optical measuring profilers measure fragile plastic features without applying physical force. Automated optical scanning captures thousands of geometric data points in seconds, verifying pitch distance on micro connectors and gear teeth. Every production lot undergoes complete First Article Inspection (FAI) reporting and 100% raw material Certificate of Analysis (COA) verification under IATF 16949 and ISO 13485 standards.
Tight Tolerance Mold Cavities and High-Performance Polymers

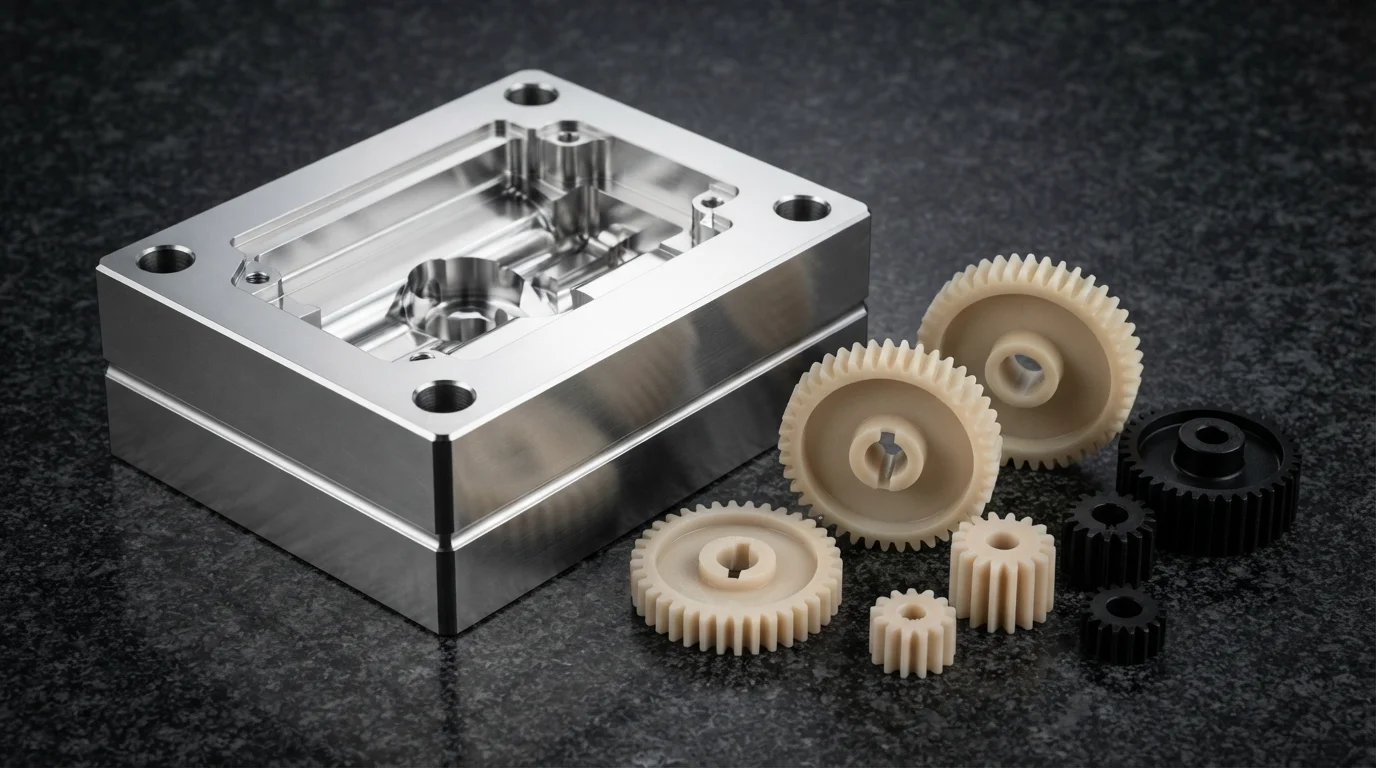

Maintaining ±0.01 mm tooling tolerances requires selecting premium hardened tool steels like S136 stainless steel and H13 tool steel. Heat-treating tool steel cores to HRC 48-52 prevents cavity wear under continuous high-pressure injection. Processing engineering thermoplastics like PEEK, POM, PA66, and polycarbonate (PC) requires accurate mold temperature control. Configuring balanced cooling water networks prevents core hot spots, minimizing isotropic shrinkage variance across complex geometries.
| Engineering Resin | Tensile Modulus (MPa) | Mold Shrinkage (%) | Dimensional Tolerance | Key Precision Application |
|---|---|---|---|---|
| POM (Delrin 100P) | 3,100 MPa | 1.8% – 2.2% | ±0.015 mm | Precision gears & mechanical actuators |
| PEEK (Victrex 450G) | 3,800 MPa | 1.0% – 1.3% | ±0.010 mm | High-temperature aerospace connectors |
| Optical PC (Lexan 141R) | 2,300 MPa | 0.5% – 0.7% | ±0.010 mm | Precision sensor lenses & light guides |
Frequently Asked Questions (FAQs)
What is the difference between standard and precision injection molding?
Standard molding achieves tolerances around ±0.1 mm to ±0.2 mm, suitable for consumer housings. Precision molding utilizes Decoupled Scientific Molding and high-accuracy tool cavity steel to achieve tight tolerances down to ±0.01 mm.
How does Decoupled Scientific Molding improve dimensional tolerances?
Decoupled Scientific Molding separates cavity filling from holding pressure. Isolating velocity control compensates for raw material viscosity variations, ensuring consistent part weight and preventing sink marks or flash.
Why is non-contact optical inspection used alongside CMM measurement?
Optical profilers measure delicate plastic features using laser sensors without applying contact pressure. Physical CMM touch probes can flex thin polymer walls, while non-contact optical inspection guarantees accurate measurements on flexible components.
