P20 Mold Steel

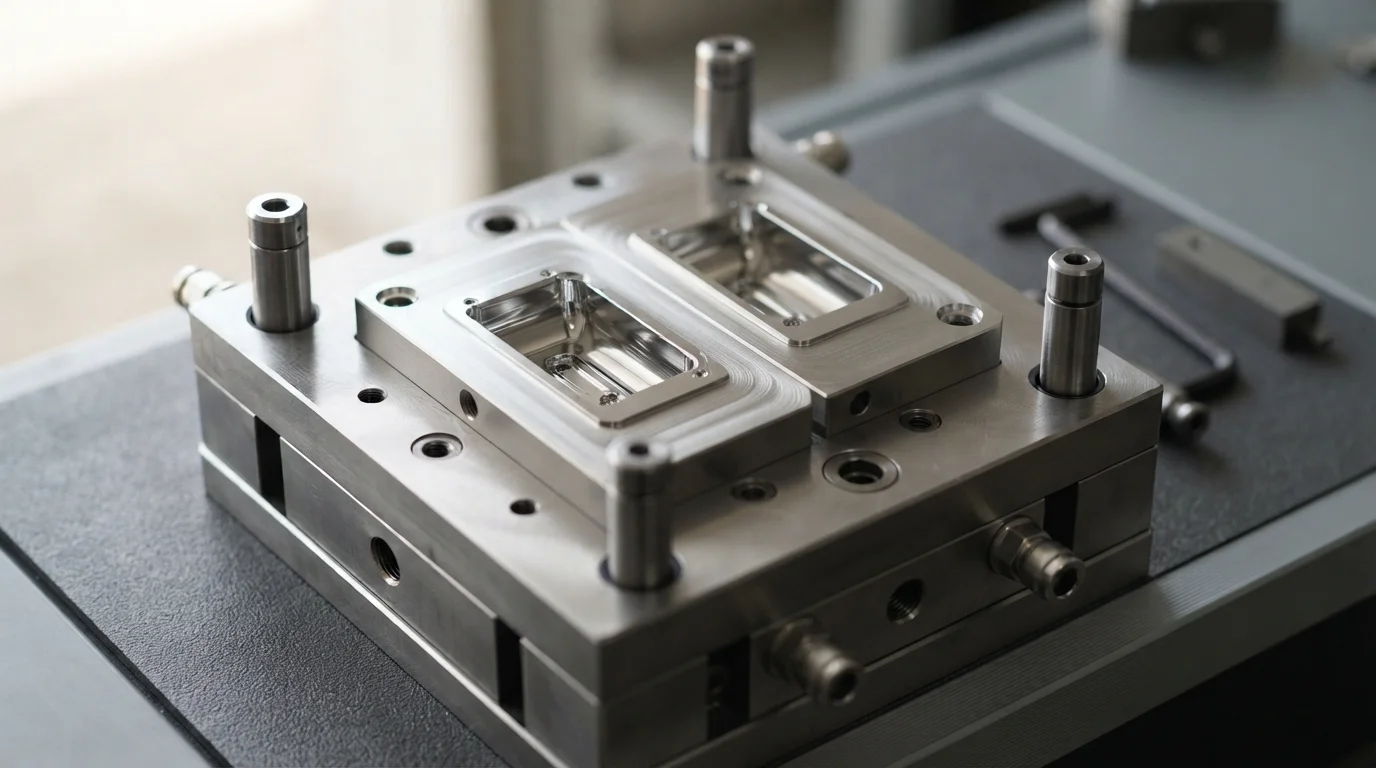

Eliminating post-machining heat treatment distortion while securing an economical tooling solution for medium-volume production runs requires an engineered pre-hardened alloy, which AISI P20 (DIN 1.2311) mold steel delivers. Pre-hardened to a uniform 28–34 HRC, P20 steel provides excellent machinability, uniform core hardness, and good polishability up to an SPI B-2 finish. At Jucheng Precision, a certified ISO 9001 and IATF 16949 contract manufacturer, we specialize in 5-axis CNC machining of P20 steel mold cavity inserts. Delivering tool shot lives up to 500,000 cycles, our P20 injection molds process commodity and engineering thermoplastics, verified by Zeiss CMM inspection.
Cost-effective P20 Mold Steel tooling solutions for medium-volume production and bridge manufacturing. Pre-hardened to 28–34 HRC, AISI P20 (DIN 1.2311) tool steel eliminates post-machining heat treatment distortion, enabling rapid 5-axis CNC mold building with a guaranteed shot life up to 500,000 cycles.
P20 Mold Steel Metallurgical & Machinability Profile
P20 is a chromium-molybdenum alloy steel pre-hardened at the mill, engineered to balance fast machining cycles against mold core durability:
| Metallurgical Metric | P20 Steel Spec Value | Tooling Engineering Advantage |
|---|---|---|
| Pre-Hardened Delivery | 28 – 34 HRC (300 HB) | Eliminates post-machining quench hardening, avoiding thermal stress cracks or dimensional warping across large tool blocks. |
| Chrom-Moly Alloy Matrix | AISI P20 / DIN 1.2311 Standard | Uniform hardness distribution from outer surface to center core, enabling consistent 5-axis CNC high-feed milling speeds. |
| Surface Polishability | Up to SPI B-2 / B-1 Finish | Takes fine paper polishing and chemical Mold-Tech texturing without grain boundary defects on non-optical consumer parts. |
P20 Steel Resins & Tooling Application Matrix
P20 pre-hardened steel is the ideal economic choice for unreinforced commodity and engineering resins during Plastic Injection Molding:
| Application Class | Compatible Polymers | P20 Tooling Strategy |
|---|---|---|
| Commodity Household & Packaging | Polypropylene (PP), Polyethylene (PE), Polystyrene (PS) | Low-cost tooling setup delivering 250,000 to 500,000 shots for storage crates, caps, lids, and domestic housewares. |
| Medium-Volume Consumer Electronics | ABS, Polycarbonate (PC), PC/ABS Alloys | Ideal for textured outer monitor covers, printer paper trays, and smart home enclosures requiring tight assembly fits. |
| Bridge & Pilot Production Tooling | Unreinforced Engineering Polymers | Used for Low Volume Injection Molding and Prototype Injection Mold bridge tools to fulfill early market orders before mass production. |
P20 Mold Steel Engineering & Tooling Fabrication Guide
Molding with pre-hardened P20 steel balances toolmaking speed against cavity accuracy through four engineering advantages:
1. Zero Heat-Treatment Distortion (30 HRC)
Because P20 steel is pre-hardened at the steel mill, no post-machining quench heat treatment is needed. This eliminates thermal stress distortion across large core plates, guaranteeing true-to-CAD dimensions on large appliance molds.
2. High-Speed 5-Axis CNC Machining
P20 exhibits excellent machinability. Our 25+ in-house 5-axis CNC machining centers cut P20 cavities rapidly, holding tolerances within ±0.005 mm while reducing toolmaking lead times to 2–3 weeks.
3. SPI B-2 Surface Polish & Mold-Tech Texturing
P20 cavity inserts accept high-grade paper polishing up to SPI B-2 or B-1 finishes. It also reacts predictably to acid etching, producing clean Mold-Tech textures or VDI 3400 spark erosion finishes.
4. Cost-Effective Medium-Volume Production (500k Shots)
For non-corrosive, non-abrasive resins, P20 molds reliably deliver 250,000 to 500,000 shots. Jucheng provides scheduled maintenance to extend tool life across long production runs.
Key Application Fields for P20 Steel Injection Molds
- Consumer Electronics & Hardware: Computer monitor back covers, printer paper trays, TV housings, remote control bodies, and desktop organizers.
- Automotive Interior & Non-Structural Trims (IATF 16949): Glove box covers, interior door trim panels, air conditioning louvers, and trunk storage bins.
- Household Commodities & Packaging: Heavy-duty storage crates, food storage container lids, bucket handles, and Two-Shot Injection Molding grips or Insert Injection Molding hardware.
Properties
| Density (AISI P20 Steel) | 7.85 g/cm³ |
| Hardness Range (Pre-Hardened) | 28 - 34 HRC |
| Brinell Hardness | 300 HB |
| Tensile Yield Strength | 830 MPa |
| Tensile Ultimate Strength | 1,000 MPa |
| Elongation at Break | 20 % |
| Flexural Modulus | 205 GPa |
| Thermal Conductivity (20°C) | 29 W/(m·K) |
| Coefficient of Thermal Expansion (20-100°C) | 12.8 10⁻⁶/K |
| SPI Polishing Surface Capability | SPI B-2 / B-1 (Paper Polish) - |
| Guaranteed Tool Shot Life | 250,000 - 500,000 Cycles |
| Maximum Mold Cavity Block Size | 2000 x 1500 mm |
| Minimum Machining Tolerance | +/- 0.005 mm |
