Fastening external covers, structural brackets, or printed circuit boards onto plastic housings requires high-durability threaded connection points. Tapping threads directly into raw thermoplastic bosses creates weak joints prone to thread stripping, stress cracking, and thread fatigue under repeated maintenance cycles. Incorporating metallic threaded fasteners into plastic bosses provides robust internal threads capable of accepting standard machine screws.
Engineers must choose between pre-placing metal fasteners into the mold core before injection or installing inserts after molding using ultrasonic or thermal heat-staking equipment. Selecting between primary in-mold encapsulation and secondary thermal insertion impacts initial tooling budgets, unit labor costs, and joint mechanical load limits. This technical comparison analyzes structural differences, torque resistance physics, and production economics.
目錄
In-Mold Inserts vs. Post-Molding Heat-Staked Fasteners
Comparing insert molding vs heat staking requires evaluating the physical installation mechanics of each process. Pre-placing threaded brass or stainless steel fasteners inside the mold cavity before resin injection characterizes primary in-mold encapsulation. Molten thermoplastic flows directly around the knurled metal exterior, solidifying into a solid, gap-free mechanical joint.

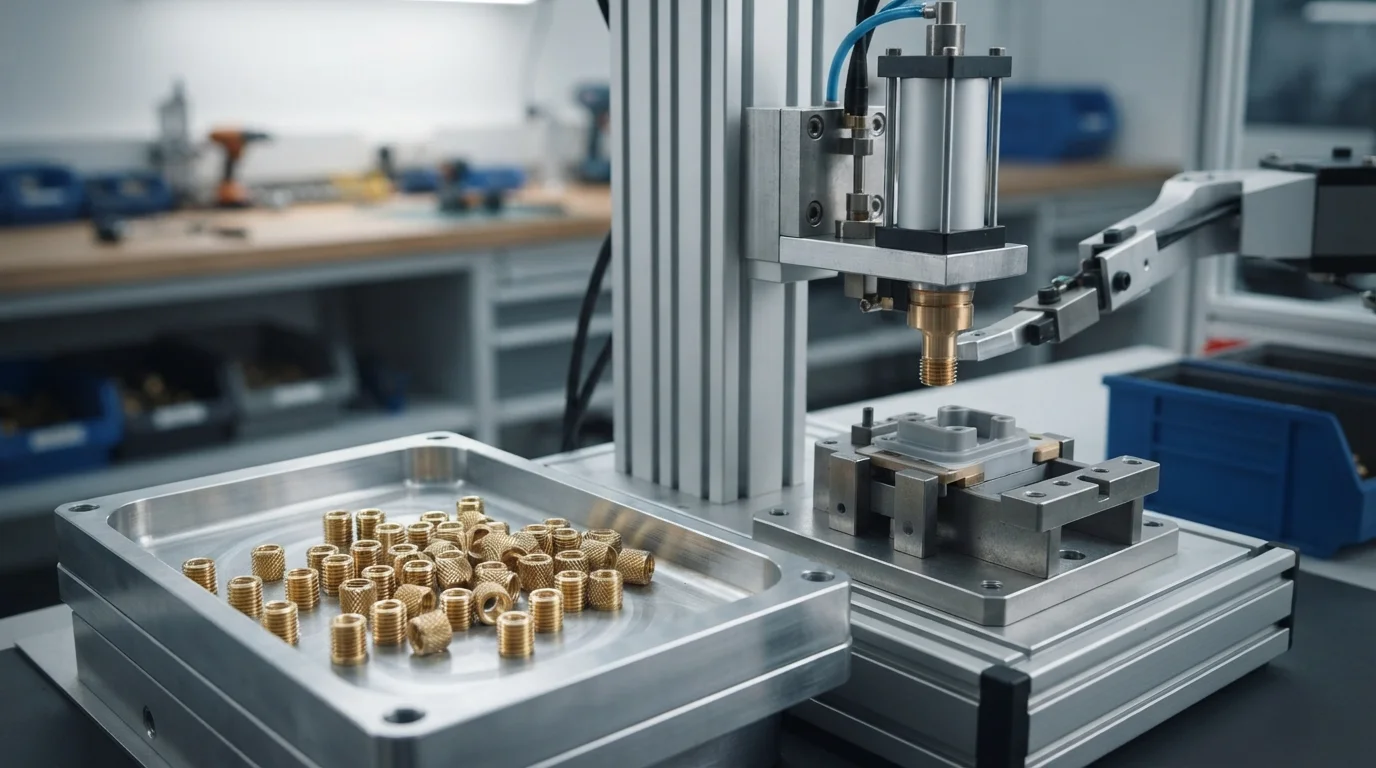

Post-molding thermal heat staking molds a plain plastic boss first, after which a heated thermal tip or ultrasonic horn presses the metal insert into the pre-molded hole. Thermal tip heat melts the plastic boss wall, permitting the insert to sink into place before the polymer re-solidifies. While post-mold insertion simplifies initial tooling, it leaves localized thermal stresses and micro-gaps inside the boss wall.

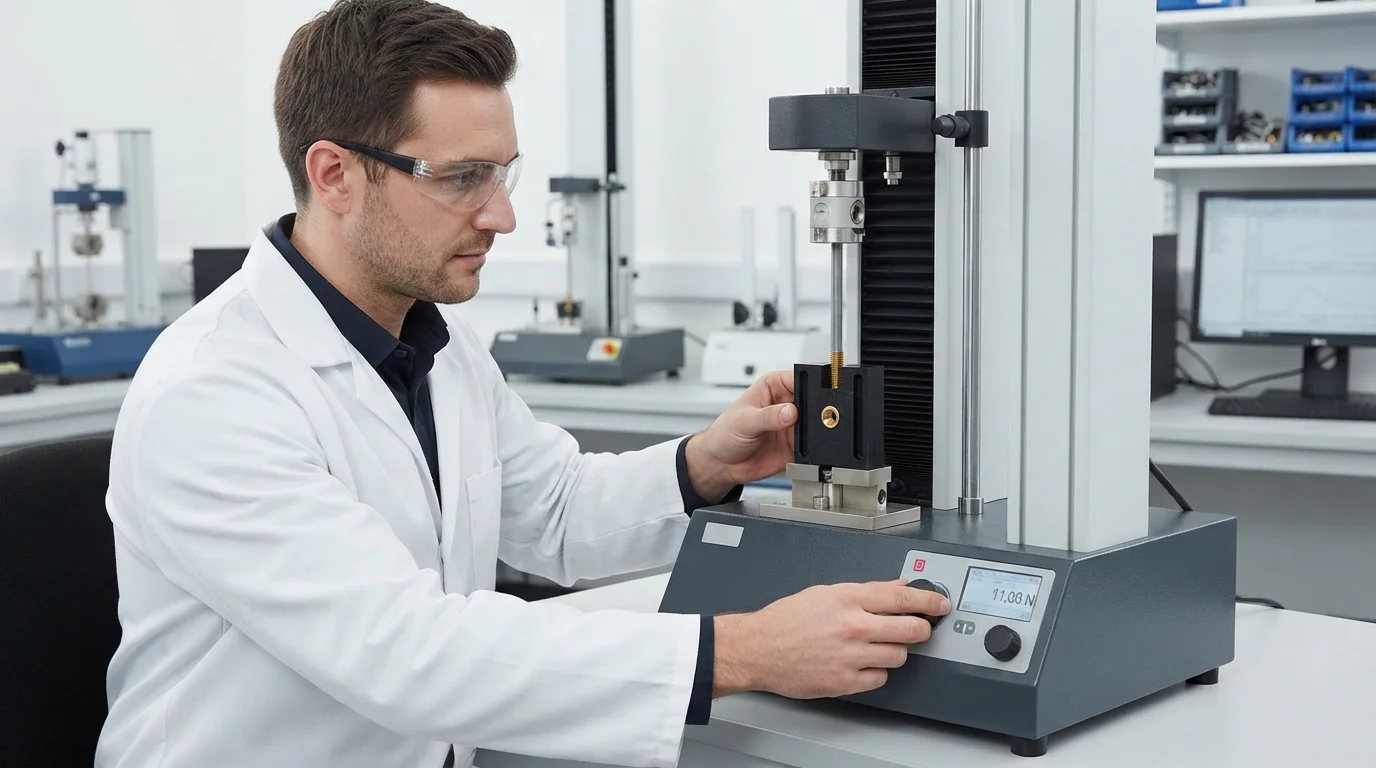

Torque Resistance & Pull-Out Force Testing Comparison

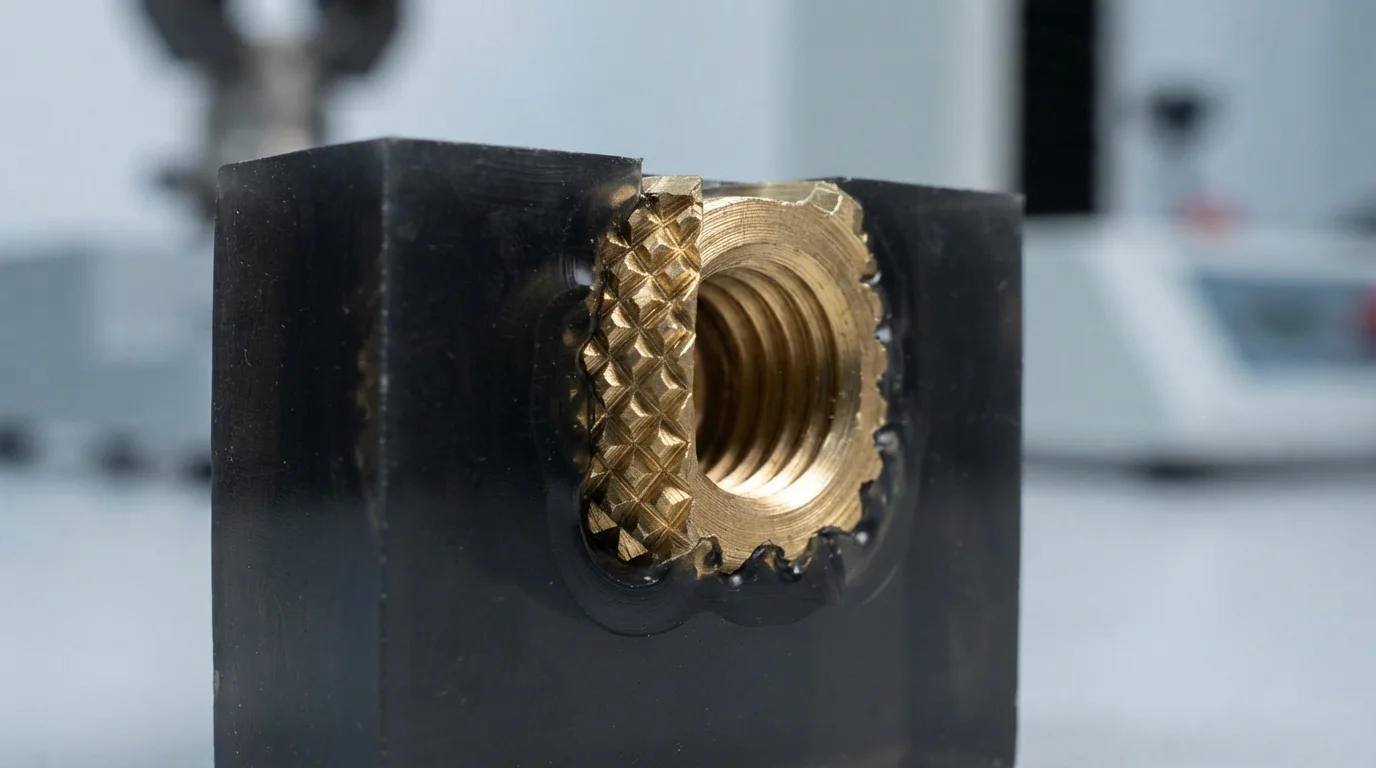

Mechanical performance parameters demonstrate why in-mold pre-placement delivers superior structural integrity. In-mold encapsulation forces molten ABS, 聚碳酸酯（PC）, or PA66 deep into the diamond knurling and undercuts of the metal insert under high injection pressure. Cooling polymer shrinks tightly around the metal anchor, maximizing both pull-out force 和 rotational torque resistance.
Thermal heat-staking merely melts the interior skin of the plastic boss, creating a shallow bond layer along the outer knurls. Heat-staked inserts frequently suffer from lower rotational torque limits because molten plastic does not pack into deep undercuts as densely as primary injection pressure. Comparing insert molding vs heat staking demonstrates why in-mold pre-placement during insert molding delivers higher pull-out strength.
| Mechanical & Process Parameter | Primary In-Mold Insert Encapsulation | Post-Molding Heat / Ultrasonic Staking | Engineering Recommendation |
|---|---|---|---|
| Axial Pull-Out Resistance | Maximum (Plastic contracts onto knurls) | Moderate (Superficial wall melting) | In-mold inserts required for heavy structural loads |

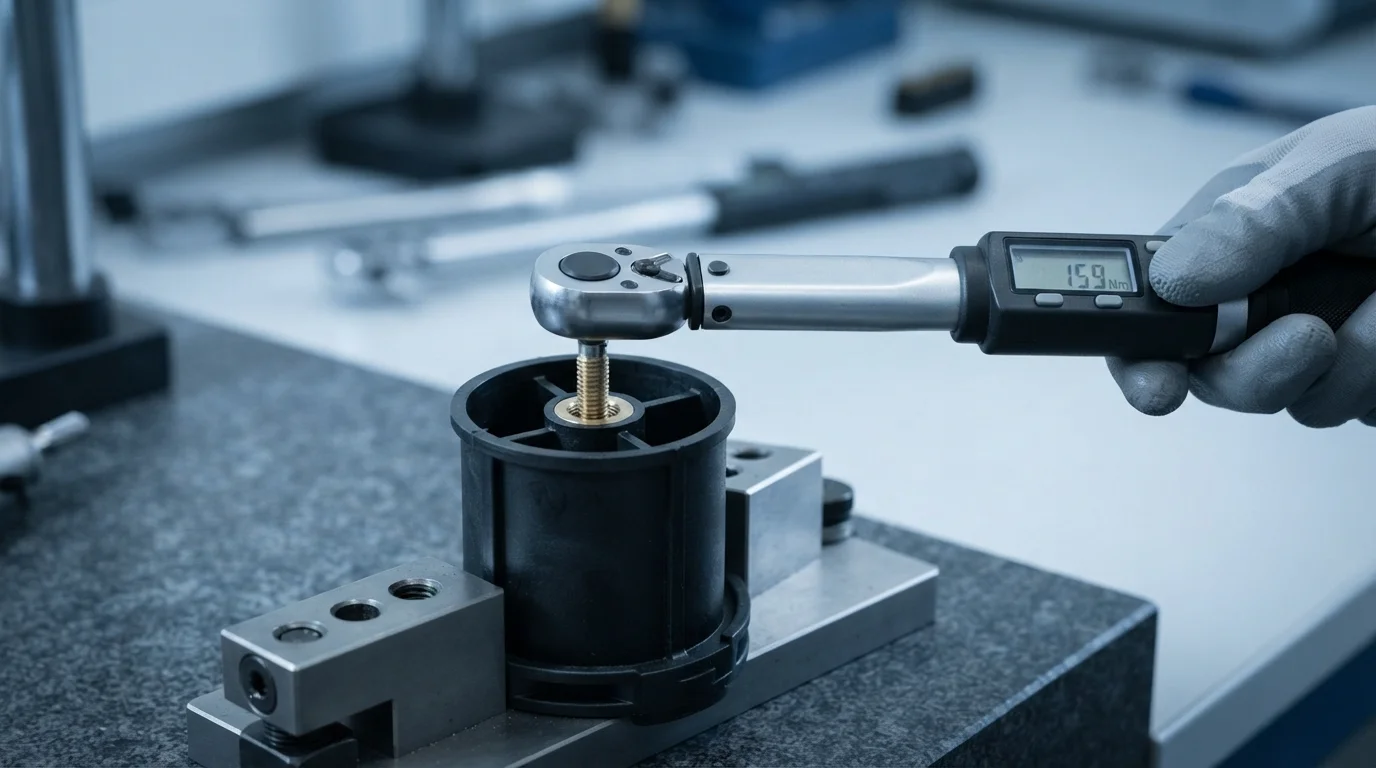

| Rotational Torque-Out Resistance | High (Deep diamond knurl interlocking) | Lower (Risk of boss wall splitting) | In-mold encapsulation prevents thread spin-out |
| Secondary Assembly Labor Cost | Zero (Automated in-press process) | High (Manual press operator labor) | In-mold process slashes unit labor for volume > 10,000 |
Low-Volume Prototyping vs. High-Volume Production Economics
Evaluating project economics requires balancing upfront non-recurring engineering tooling budgets against unit assembly labor costs. Post-molding thermal staking offers lower initial mold tool costs because the injection mold uses plain core pins without floating shut-offs or locating features. However, thermal staking introduces secondary manual labor, requiring operators or multi-tip thermal presses to process every single part.

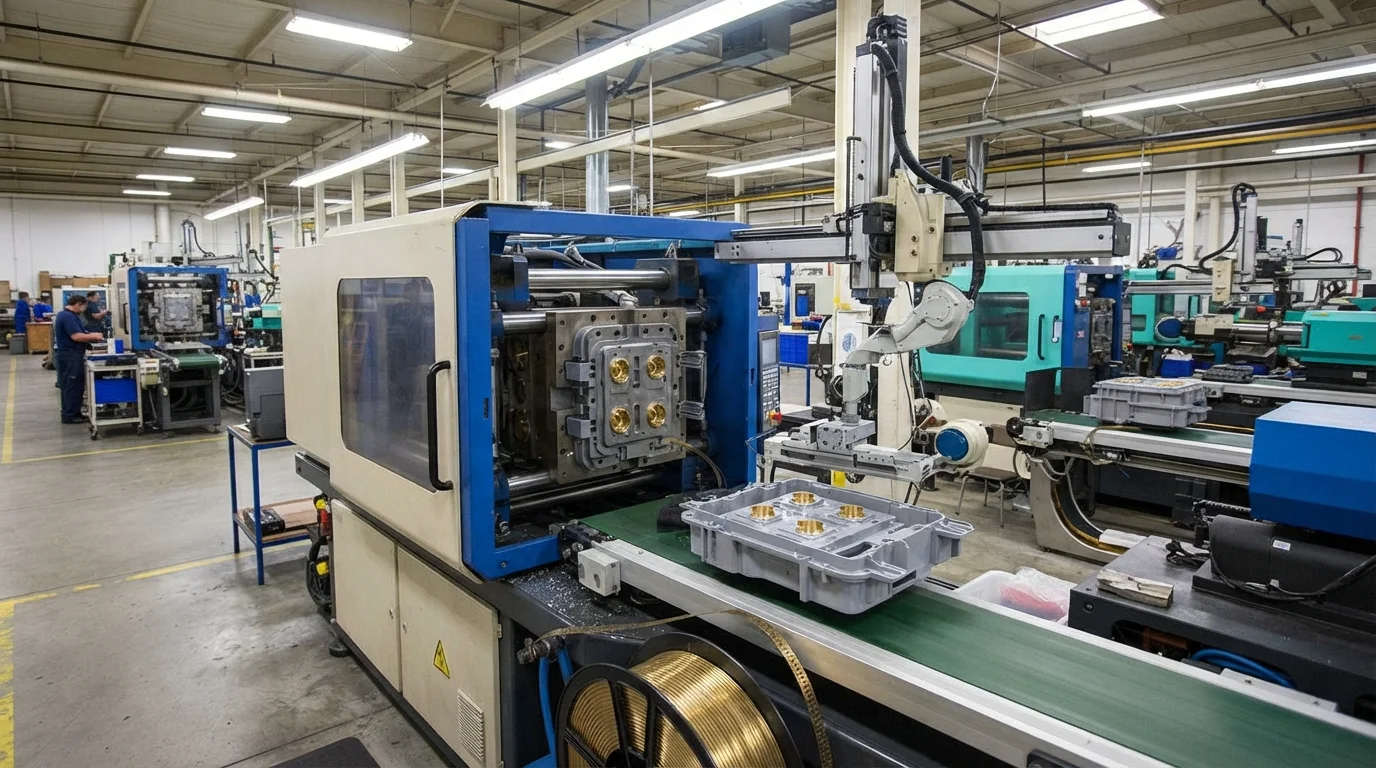

In-mold pre-placement increases initial mold engineering precision requirements to prevent plastic flash on active threads. High-volume automotive and medical programs easily offset higher initial tool costs by eliminating secondary assembly machines and reducing cycle labor. Automated 6-axis robots load metal inserts within seconds, driving unit production expenses down significantly over large production runs.
Frequently Asked Questions (FAQs)
Why does insert molding achieve higher pull-out force than heat staking?
In-mold encapsulation forces molten resin into complex knurled undercuts under high injection pressure. Shrinking plastic wraps around the metal insert tightly during primary cooling, creating a seamless mechanical bond that resists extreme axial pull-out loads.
When is heat staking preferred over insert molding for plastic fasteners?
Heat staking is advantageous for low-volume prototype builds or complex parts containing dozens of threaded locations where manual in-mold insert placement would excessively prolong machine cycle times. Utilizing post-mold insertion also simplifies initial mold core tooling and reduces NRE budgets.
How do you prevent plastic from leaking into internal threads during in-mold insertion?
Preventing plastic ingress into threaded blind or through-holes relies on precision mold core locating pins and tight shut-off land steps. Locating pins seal the internal thread opening firmly against tool steel, blocking molten polymer from entering during high-pressure packing.
