Multi-Shot Injection Molding
Combining distinct polymers, colors, or soft-touch elastomeric layers in a single automated machine cycle without manual assembly steps requires advanced multi-shot manufacturing. Multi-shot injection molding (commonly known as 2K or multi-material molding) utilizes rotating index platens or secondary injection units to inject multiple resins sequentially into a shared tool, forming permanent chemical bonds. At Jucheng Precision, an ISO 9001, ISO 13485, and IATF 16949 certified contract manufacturer, we specialize in high-precision 2K and multi-material molding. Powered by multi-injection press technology and in-house 5-axis CNC-machined S136 stainless steel tooling, we control interfacial thermal cohesion to prevent peeling, delivering zero-defect multi-material assemblies verified by Zeiss CMM inspection.
Multi-Shot (2K) Molding Technology & Interfacial Adhesion Profile
Multi-shot manufacturing, including Two-Shot Injection Molding and multi-material co-injection, combines rigid and flexible polymers in a single automated press cycle:
| Multi-Shot Technology | Substrate & Resin Combination | Interfacial Bonding Advantage |
|---|---|---|
| Rotary Platen 2K Molding | Rigid Polymer (PC, ABS) + Soft Elastomer (Thermoplastic Elastomer (TPE), Thermoplastic Polyurethane (TPU)) | Forms a permanent thermal chemical weld at the material interface, eliminating post-mold assembly labor and adhesive glues. |
| Multi-Color Co-Injection | Transparent Polymer + Opaque Pigmented Substrate | Delivers crisp aesthetic back-lit graphics, multi-colored automotive tail lamps, and wear-proof indicator buttons. |
| Sequential Transfer Molding | Rigid Engineering Plastic + Liquid Silicone Rubber (LSR) Molding | Creates dynamic, watertight IP68 seals directly over medical or electronic housing frames in a continuous automated cycle. |
Substrate Interfacial Compatibility & Adhesion Matrix
Successful multi-shot manufacturing relies on matching chemical surface energies between the primary core and secondary injection phase:
| Rigid Substrate Polymer | Soft Elastomer Partner | Chemical Adhesion Performance |
|---|---|---|
| Polycarbonate (PC) / ABS Alloys | Specialized Polar TPE / TPU Compounds | Excellent. High interfacial melt diffusion produces a permanent 5B cross-hatch bond, resisting peeling during heavy drop-tests. |
| Polyamide (PA/Nylon) Structural Frames | Modified PA-Adhesive TPE / High-Temp TPU | Excellent. Thermal fusion across the high-temperature nylon interface creates rugged, anti-slip hand grips for power tools. |
| Polypropylene (PP) Medical Bodies | SBC-based Medical Grade TPE | Excellent. Chemical similarity between PP and SEBS matrices yields seamless, watertight sealing lip gaskets inside Biocompatible & Medical Grade Resin assemblies. |
Multi-Shot Tooling Blueprint: Rotating Platens & Interface Cohesion
Executing multi-material Plastic Injection Molding with zero part flash or peeling demands specialized tooling architecture and Custom Mold Making precision:
1. Rotary Index Platen & Core-Transfer Tooling

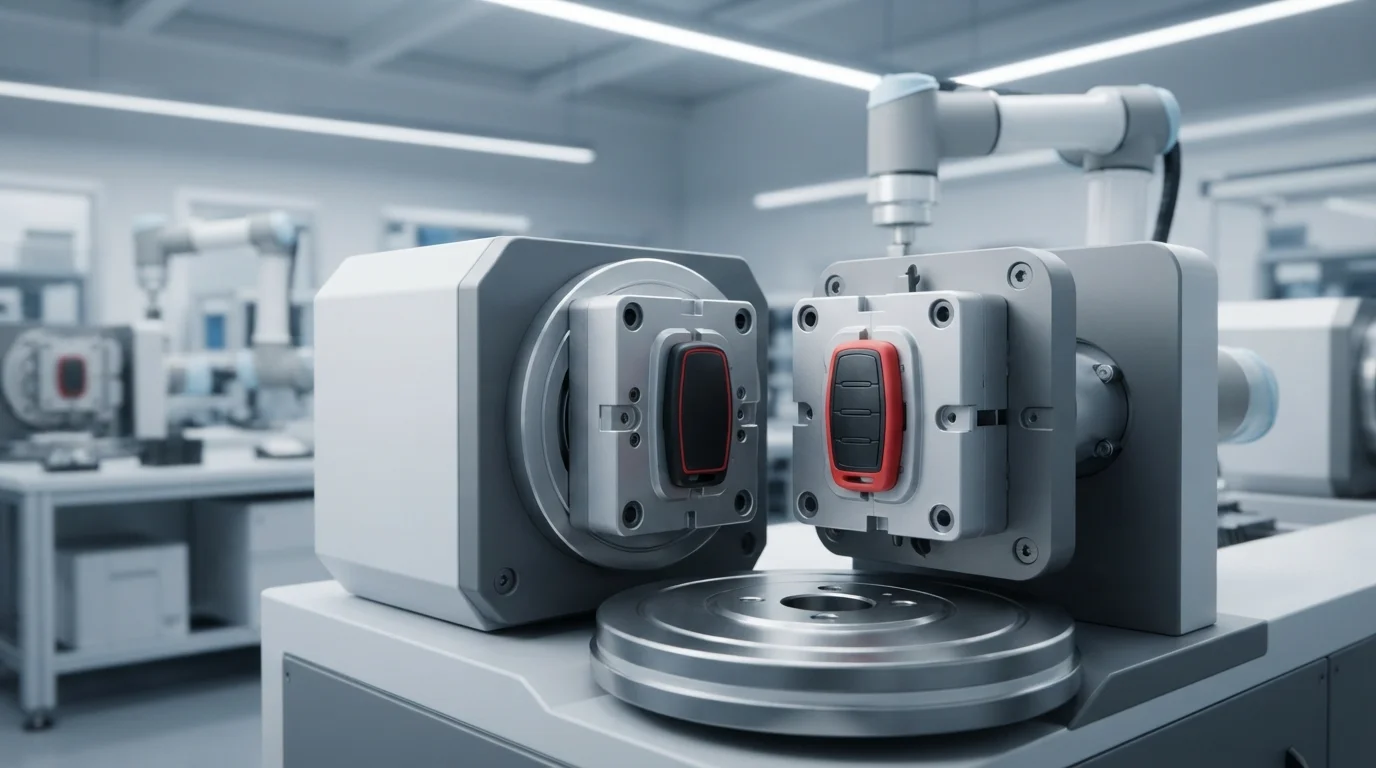

Our multi-shot presses utilize servo-driven rotating index tables. After the primary rigid core is injected, the mold rotates 180 degrees to align with the secondary injection barrel, eliminating manual part transfer and securing tight registration tolerances.
2. Chemical Interfacial Adhesion (Eliminating Peeling)
To prevent edge peeling between hard and soft layers during Overmolding Services, our engineers design mechanical interlocking grooves alongside thermal gate timing. Heat from the secondary shot partially re-melts the substrate surface to forge an unbreakable chemical bond.
3. Micron-Level Parting Line Flash Control
Soft elastomers flow readily under high melt shear. Jucheng’s 25+ 5-axis CNC machining centers cut hardened S136 stainless steel mold cavities (50 HRC) with micro-tolerances. We maintain shut-off clearances strictly under 0.005mm to ensure flash-free transitions on Thin Wall Injection Molding boundaries.
4. Precision Cleanroom & Multi-Material Automation
For healthcare disposables and medical seals, multi-shot molding is executed inside certified Cleanroom Injection Molding facilities (ISO Class 7/8). Robotic pick-and-place systems handle finished parts with zero human contact prior to Post-Molding & Assembly.
Key Application Fields for Multi-Shot Molded Components
- Automotive Interiors & Controls (IATF 16949 Certified): Multi-colored HVAC buttons, illuminated steering wheel controls, soft-touch door handle bezels, Insert Injection Molding electronic keys, and weather seals.
- Medical & Healthcare Consumables (ISO 13485 Certified): Watertight syringe plunger tips, dual-material diagnostic cartridge housings, soft-grip surgical tools, and respiratory mask seals.
- Consumer Electronics & Hardware: Waterproof IP68 smartphone bumpers, power tool ergonomic grips, electric toothbrush handles, and luxury cosmetic caps with custom Surface Finishes.
